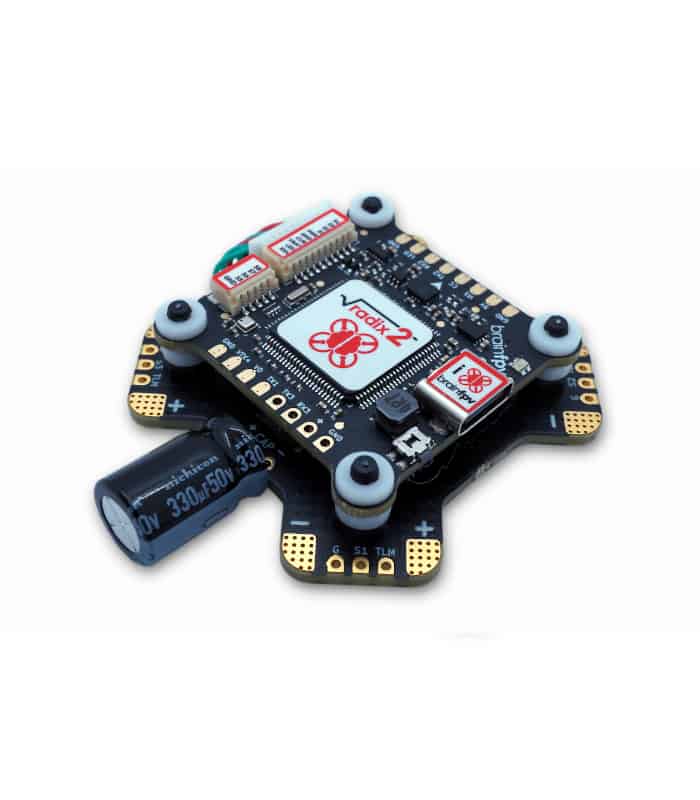

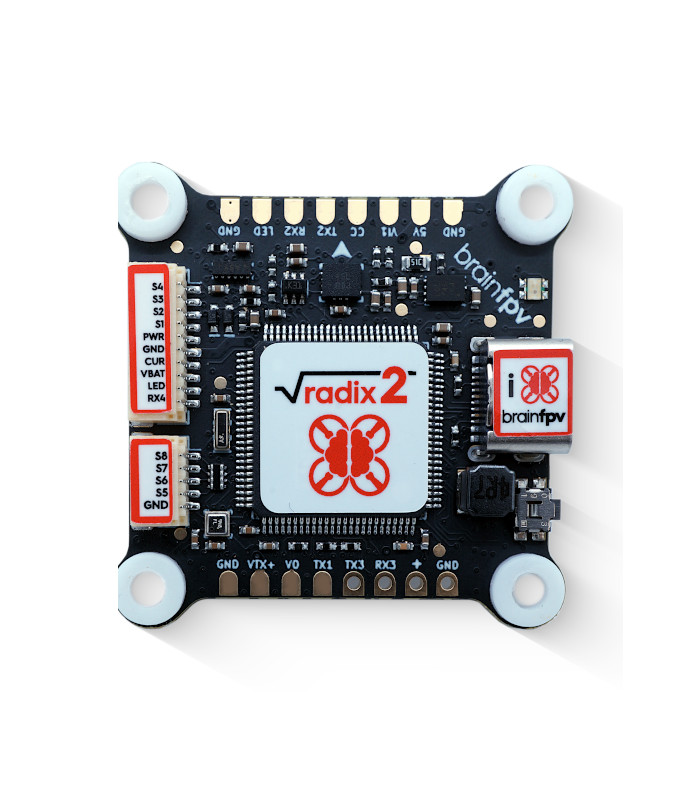

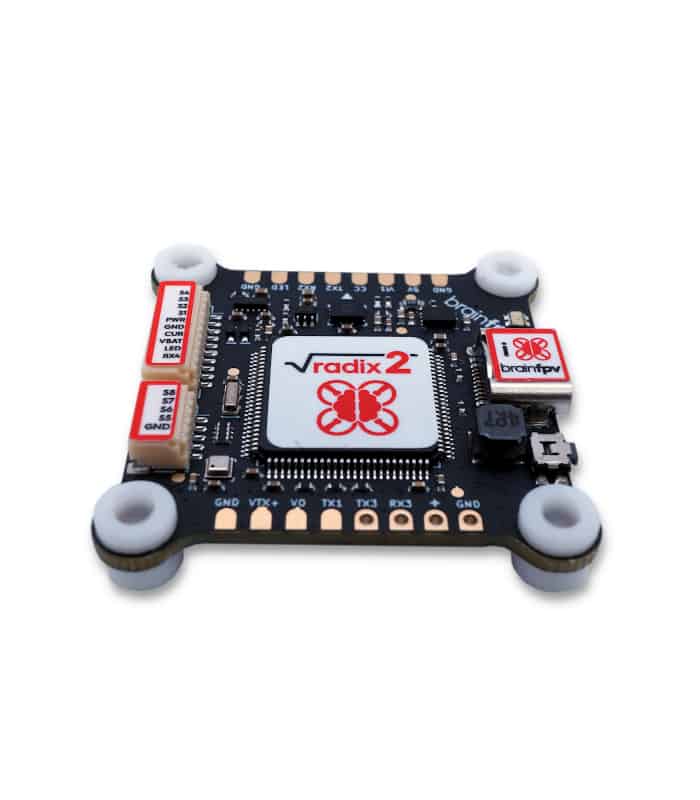

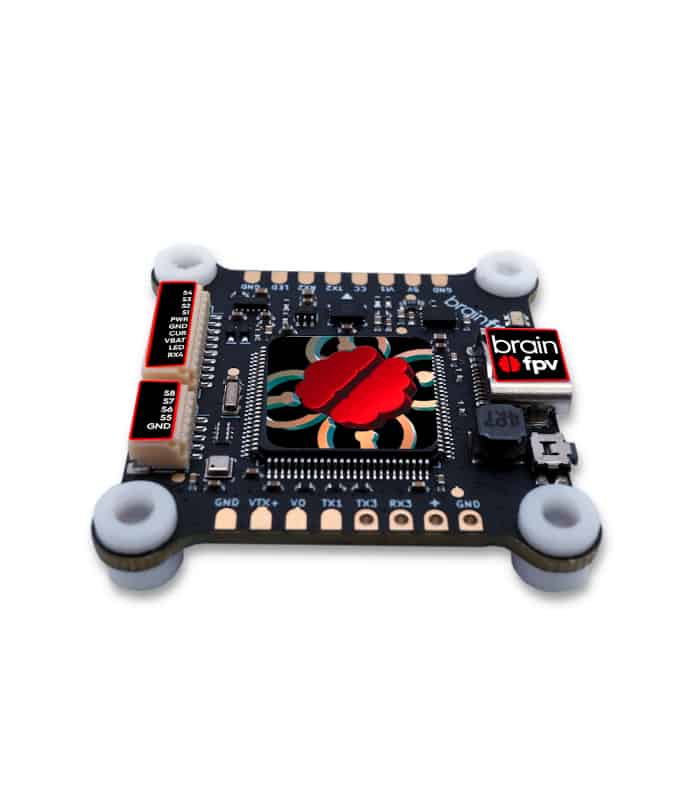

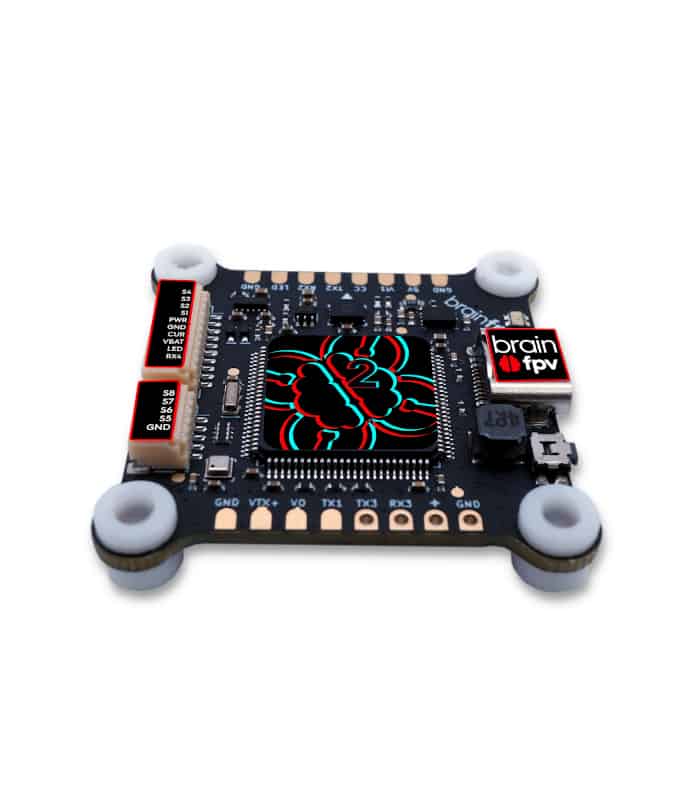

    RADIX 2 Flight Controller

    $99.00

    30×30 H7 fc w/ full graphic OSD for ANALOG FPV

    * NEW 2024 BATCH: REVISION 2.0*

    Includes:

    • RADIX 2 flight controller; REVISION 2.0
    • Sweet stickers
    • Silicone anti-vibration grommets 4x
    • 5-pin cable for motor outputs 5 to 8
    • BrainFPV 4-in-1 ESC cable kit (cables and connectors to make a cable that works with any 4-in-1 ESC with a JST-SH 7 pin, 8 pin, or 10 pin connector)



    In stock

    Compare
    Add to wishlist
    13 People watching this product now!
    Description

    MOST POPULAR  |  MOST RELIABLE  |  FOR ANALOG FPV

    RADIX 2 H7 FLIGHT CONTROLLER

    MADE IN THE USA!

    Since early 2022, all RADIX 2 Flight Controllers are being manufactured locally in Oregon, USA!
    ADD TO CART

    FPV’S MOST POPULAR FLIGHT CONTROLLER EVER

    H7 | FULL GRAPHICAL OSD

    Radix 2 Flight Controller

    The RADIX 2 has a blazing fast H7 processor running at 480 MHz, a full graphical OSD, a built-in voltage regulator that can handle up to 8S (35 V), to 8 motor outputs, driverless flashing, and more!

    COMPATIBLE FOR YOUR KIND OF FLYING

    racing | cinematography | octocopters | autonomous

    RADIX 2 DOES IT ALL

    The RADIX 2 is designed to be compatible with any 4-in-1 motor controller (ESC) on the market. For octocopters, you can use the included 5-pin cable to connect a second 4-in-1 ESC for motors 5 to 8. All outputs fully support bi-directional DSHOT that enables the motor controllers to send back real-time telemetry that is used by the flight controller to perform adaptive RPM based noise filtering.

    CUSTOMIZATION FEATURES

    ON-SCREEN-DISPLAY

    Customize your flight and add features such as altitude, horizon, your pilot logo, and more!

    PREMIUM FIRMWARE OPTIONS

    HAND PICKED ORGANIC QUALITY

    All firmware is 100% vegan

    RADIX 2: REVISION 2.0

    RADIX 2 & RADIX 2 HD

    SIMILARITIES

    • Processor: STM32H750 processor running at 480 MHz with 1 MB RAM
    • Gyro: Bosch Sensortec BMI270 gyro / accelerometer *Each BMI270 is individually calibrated by BrainFPV LLC*
    • Barometer: Infineon DPS310
    • BrainFPV Bootloader: Driverless flashing
    • 5 V / 1.5 A regulator
    • 12S Voltage Sensing
    • 8S compatible: Can be powered directly from up to 8S (35 V) battery voltage
    • RGB status LED: with customizable color
    • RBG LED output
    • I2C port: for external sensors
    • Buzzer output
    • Analog RSSI input
    • USB connector: Type-C
    • Size: 37 x 37 mm (30.5 mm hole spacing)
    • Weight: 7g
    • 8 motor outputs, you can use two 4-in-1 ESCs for an octocopter
    • Made in the USA NDAA compliant
    FEATURES AND SPECS

    RADIX 2 SPECIFIC

    Changes for RADIX 2 Revision 2.0 Released in 2024:

    - Improved barometer: Infineon DPS310
    - Improved 5 V voltage regulator that we also use in the RADIX 2 HD
    - To learn how to use the RADIX 2, make sure to read the manual!

    • Full graphical on-screen-display (OSD) for ANALOG FPV
    • Dual camera input: Camera can be switched using a switch on the RC transmitter
    • VTX pit switch: to turn on/off the video transmitter.
    • Voltage for VTX can be 5 V or the battery voltage.
    • 32 MByte built-in flash memory: 30 MByte available for logging and settings storage
    • 6 serial ports (UARTs): all with integrated inverters for S-BUS and other inverted protocols
    • Camera control output for configuring analog cameras
    • Supported firmware: Betaflight, INAV
    • Best step-by-step manual in the FPV industry
    Additional information
    Features

    Analog

    ,

    Graphical OSD

    ,

    Plug and Play Connector
    TECHNICAL SPECIFICATIONS

    BrainFPV RADIX 2 Technical Specifications

    • New Processor: STM32 H7 processor running at 480 MHz with 1 MB RAM
    • New Gyro: New Bosch Sensortec BMI270 gyro / accelerometer delivering superior flight performance
    • New Baro: Latest generation Infineon DPS310 barometer for accurate altitude readings. Previous revisions used Bosch Sensortec BMP388 (Rev 1.0) or Omron 2SMPB-02B (Rev 1.2)
    • Better OSD: Improved full graphical on-screen-display (OSD) with gray levels and transparency
    • Dual camera input: Camera can be switched using a switch on the RC transmitter
    • VTX pit switch: to turn on/off the video transmitter. Voltage for VTX can be 5 V or the battery voltage.
      Note: The original RADIX 2 had over-current protection for the pit switch, which was removed in hardware revision 1.2 released in 2022.
    • 32 MByte built-in flash memory: 30 MByte available for logging and settings storage
    • Driverless flashing with the BrainFPV USB mass storage bootloader. Simply copy the firmware file to the flight controller when connected to your computer. No more messing with DFU drivers
    • RGB status LED with customizable color
    • 8 motor outputs: all supporting bi-directional DSHOT for RPM filtering. All outputs are available on connectors for easy connection of one or two 4-in-1 motor controllers (ESC’s).
    • 6 serial ports (UARTs): all with integrated inverters for S-BUS and other inverted protocols
    • I2C port for external sensors
    • RGB LED output
    • Buzzer output
    • Camera control output for configuring analog cameras
    • Analog RSSI input
    • 5 V regulator with 1.5 A output and up to 8S (35 V) input voltage
    • USB Type-C connector
    • Size: 37 x 37 mm (30.5 mm hole spacing)
    • Weight: 7g

    Changes for RADIX 2 Revision 2.0 Released in 2024:

    • Improved barometer: Infineon DPS310
    • Improved 5 V voltage regulator that we also use in the RADIX 2 HD

    Changes for RADIX 2 Revision 1.2 Released in 2022:

    • Improved barometer: Omron 2SMPB-02B
    • TVS diode (“spike protector”) to protect 5 V regulator from voltage spikes
    • Removed VTX pit switch over-current protection. Pit switch can supply up to 1.5 A
    • Made in Oregon, USA!

    You can use 2 4-in-1 ESCs for an octocopter. Holy mother of FPV!  It comes with cables and connectors to easily make your own wiring harness.

    To learn how to use the RADIX 2, make sure to read the manual!
